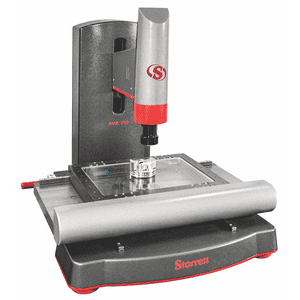

Starrett AVR300 CNC Vision System
Price by Request
Savings: N/A
The AVR300 CNC vision system offers 12″ x 8″ x 8″ travel, Z-axis measuring, a powerful MetLogix software control system, 6.5:1 (optional 12:1) zoom optics and several LED illumination options. These systems are general-purpose CNC video-based measurement systems, ideal for quality assurance, inspection labs, manufacturing, assembly and research facilities. A precision mechanical bearing X-Y-Z stage and column translates data accurately and with repeatability to the MetLogix software. This compact bench top system is precise and powerful!
Starrett AVR300 CNC Vision System Features
Features
- System Type: Bench Top
- Part View Orientation: Vertical
- X-Y-Z Travel: 12″ x 8″ x 8″ (300mm x 200mm x 200mm)
- Z Axis Measuring: Standard
- CNC: Standard
- X-Y Accuracy (µm): E2 = 1.9 µm + 5L/1000
- Z Accuracy (µm): E1 = 2.5 µm + 5L/1000
- Scale Resolution: 0.1 µm
- Base: Granite
- Control System / Software: MetLogix M3
- Display: 21″ Touchscreen PC
- Zoom Optics – Standard: 6.5:1
- Digital Video Camera: 1 MP Color Std. 2MP with Telecentric
- Surface Ring Illumination: LED
- Transmitted Illumination: LED
Options
- Dedicated 6.5:1 or 12:1 CNC zoom optics
- Quick-change bayonet lens mount for telecentric optics
- Interchangeable bayonet mount telecentric optics with magnifications of 0.30x, 0.50x, 0.80x, 1.0x, 2.0x and 4.0x
- 0.5x, 1.5x and 2.0x auxiliary lenses for zoom optics
- Renishaw touch probe kit
- Quadrant LED surface illumination for zoom optics
- DXF/FOV option for automatic comparison to CAD designs
- Modular workstation system
- Calibration standards
- Part fixtures and work holding devices
Software
The AVR Series is built around a 24″ touch screen and PC which runs MetLogix™ M3 CNC software under Windows® 10 Professional. M3 software supports 3-axis measurements and 2D geometrical constructs (points, lines, angles, rectangles). The screen displays a live video image of the part plus geometry tools and digital readings. The part image can be resized using pan and zoom, and measurements can be taken by simply tapping a feature on the screen. With the M3 DXF/FOV option CAD files can be imported over a network and be automatically compared to the actual part.
Features:
- 24″ (60cm) color graphic touch-screen monitor and PC
- M3 controller housed in Z column
- Full CNC control of X-Y-Z position and optical zoom
- Manual X-Y-Z position control via joystick and trackball
- Windows® 10 Professional operating system
- Wi-Fi network connectivity
- Video edge detection
- X-Y-Z measurements
- 2D geometric constructs plus height
- FOV measurements integrated with X-Y stage motion
- CAD file import and export
- Automatic comparison of measurements to CAD files
Optics
The AVR Series is built around a 24″ touch screen and PC which runs MetLogix™ M3 CNC software under Windows® 10 Professional. M3 software supports 3-axis measurements and 2D geometrical constructs (points, lines, angles, rectangles). The screen displays a live video image of the part plus geometry tools and digital readings. The part image can be resized using pan and zoom, and measurements can be taken by simply tapping a feature on the screen. With the M3 DXF/FOV option CAD files can be imported over a network and be automatically compared to the actual part.
Features:
- 24″ (60cm) color graphic touch-screen monitor and PC
- M3 controller housed in Z column
- Full CNC control of X-Y-Z position and optical zoom
- Manual X-Y-Z position control via joystick and trackball
- Windows® 10 Professional operating system
- Wi-Fi network connectivity
- Video edge detection
- X-Y-Z measurements
- 2D geometric constructs plus height
- FOV measurements integrated with X-Y stage motion
- CAD file import and export
- Automatic comparison of measurements to CAD files
