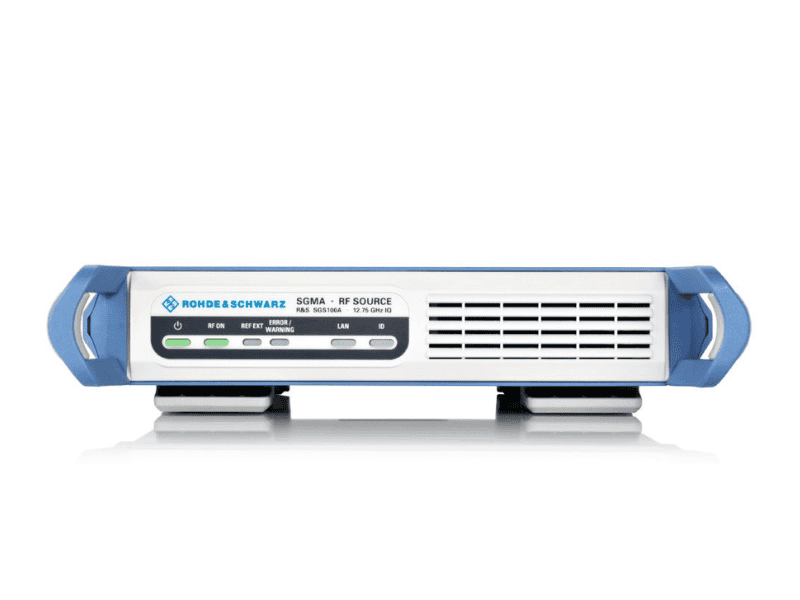

SGS100A

The R&S®SGS100A is an RF source available as a CW source or a vector signal generator, meeting automated test system needs. Its frequency range of up to 12.75 GHz covers essential digital signals, and the CW version can serve as a flexible local oscillator or for interference testing against mobile radio standards.

SGS100A Features

Key Facts

  • Smallest fully integrated vector signal generator on the market
  • Excellent RF performance and space-saving design
  • Max. output level of typ. +22 dBm for compensating setup losses
  • High output frequency up to 12.75 GHz for broad applicability
  • Wear-free electronic attenuator for high reliability

Specifications

  • Frequency Range: 1 MHz – 12.75 GHz
  • Output Power: -120 dBm to +15 dBm
  • SSB phase noise: ≤ –126 dBc
  • Harmonics: < -30 dBc

.
